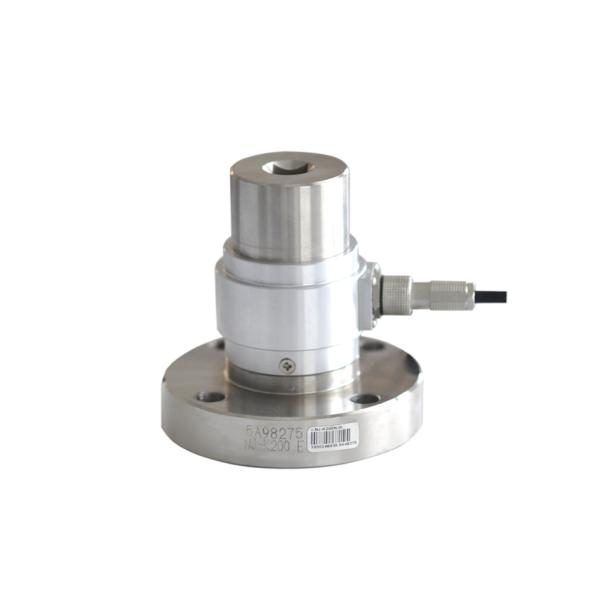

Static Torque Measure Alloy Steel Load Cell IN-NJ-K

Place of Origin : China

Model Number : IN-NJ-K

Material : Alloy steel

Application : Static torque measure

Contact Now

Static torque measure alloy steel load cell

Static Torque Measure Alloy Steel Load Cell IN-NJ-K

Static Torque Measure Alloy Steel Load Cell IN-NJ-K

Items UNIT TECHNICAL DATA
Rated capacities(Emax) N.m 50, 100, 200, 300, 500, 800
Sensitivity mV/V 1~2
Total error F.S ±0.5, ±1%
Creep error(30min) F.S ±0.05%
Zero balance F.S ±1%
TCO F.S/℃ ±0.05% / 10
TC SPAN F.S/℃ ±0.05% / 10
Input impedance Ω 400±50
Output impedance Ω 352±3
Insulation impedance MΩ ≥5000
Temperature range, operating ℃ -30~ +70
Maximum safe overload F.S 120%
Ultimate overload F.S 150%
Excitation, recommend V 10-12V DC
Excitation, maximum V 15V DC
Protection class IP66
Construction Alloy Steel
Cable m Length: 5
mm Diameter: φ5
Wiring Exc+(Red) Exc-(Black) Sig+(Green) Sig-(White)
